16 1 7 18 Acura LLX AC Heater Climate Pane Control Temperature 79600 TV9 A510 M1

Product Details

Description

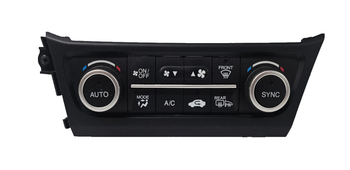

This is a genuine OEM Acura Center Dashboard Dual Automatic Climate Control Switch Panel Unit removed from a running 2017 Acura ILX Premium 2.4L. Finished in its factory-original dark metallic trim casing and carrying exact OEM part sequence 79600-TV9-A510-M1, this interior HVAC control module is an ideal direct physical, mechanical, and electronic drop-in replacement to instantly resolve common center stack failures including sticky temperature knobs, unresponsive blower speed buttons, non-engaging dual-zone SYNC functions, non-responsive A/C compressor switches, or burnt-out night backlighting illumination.

As an authentic factory-original component, this climate control panel features precisely mapped mounting screw tabs and clean multi-pin electrical harness connector docks designed to sit completely flush inside your center dashboard trim. Opting for a genuine Acura OEM control module ensures exact electrical resistance matching and CAN-bus signal communication with your vehicle's heater control valve, blower motor transistor, and ambient temperature sensors. Every rotary dial action, push-button switch, and night backlighting circuit on this unit has been fully bench-tested and operates flawlessly.

Vehicle Compatibility

Please precisely verify your original module's part number sticker and dial face layout before purchasing. This climate control switch fits dual-zone automatic setups:

• Acura ILX Sedan (Base, Premium, Technology, A-Spec - 2.4L 4-Cyl): 2016, 2017, 2018

• Application Warning: This module is configured strictly for 2016–2018 DE1 facelifted Acura ILX models matching part series 79600-TV9-A510-M1. It will NOT fit 2013–2015 pre-facelift Acura ILX models due to different interior dash bezel styling and harness configurations. It will NOT fit 2019–2022 models which carry updated part number 79600-T3R-A510-M1.

Important Installation Information

• Direct Mechanical Bolt-In & Harness Integration: Replacing this center dashboard unit requires basic hand tools. Carefully unclip the surrounding center dash trim bezel using a soft plastic pry wedge tool. Unbolt the retaining screws securing the climate control assembly, pull the unit forward, disconnect the rear multi-pin electrical harness plugs, swap the controller over, reconnect all wiring lines, re-tighten the mounting screws, and press the dash trim panel back into place.

Key Features

• Fully Tested Rotary Dials & Buttons: Dual AUTO and SYNC temperature control knobs turn smoothly with crisp detents.

• Functional Night Illumination: Backlighting lamps and status indicator LEDs have been bench-tested for clear night visibility.

• Corrosion-Free Harness Terminals: Rear multi-pin connector docks are completely clean, straight, and unbent, free of moisture or oxidation.

• Clean Cosmetic Condition: The front faceplate, control knobs, and printed function markings are clean and well-preserved, showing only light, standard signs of careful use.

Shipping & Handling

• Packaging: Shipped securely inside a thick, heavy-duty structural box packed heavily with anti-static bubble wrap and soft foam layers to ensure the front control dials, mounting tabs, and rear electrical harness docks arrive completely pressure-isolated, shock-protected, and pristine.
