2003 2004 2005 Honda Pilot A/C Heater Climate Temperature Control S9V-A410-M1

Product Details

Description

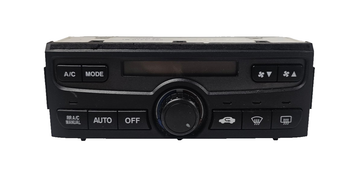

This is a genuine OEM Honda Center Dashboard Front A/C & Heater Climate Control Switch Panel Assembly removed from a running donor vehicle. Finished in its factory-original dark metallic gray faceplate with rotary dials and push buttons and carrying exact OEM part sequence S9V-A410-M1, this primary HVAC control unit is an ideal direct physical, mechanical, and electronic drop-in replacement to instantly resolve common interior heating and cooling issues including non-responsive fan speeds, stuck temperature selector dials, failed A/C button engagement, non-working rear defrost switches, or dead panel backlighting.

As an authentic factory-original component, this climate module features factory structural mounting clips and clean multi-pin rear electrical harness connector ports designed to snap seamlessly into your Pilot's center stack dashboard frame. Opting for a genuine Honda OEM unit maintains exact wiring harness compatibility, factory interior backlighting color match, and smooth mechanical rotary dial resistance. Every control knob, mode switch button, and electrical pin terminal on this unit has been fully bench-tested and operates properly.

Vehicle Compatibility

Please precisely verify your original panel's part number sticker and front knob configuration before purchasing. This climate control panel fits:

• Honda Pilot SUV (LX, EX, EX-L - 3.5L V6): 2003, 2004, 2005

• Application Warning: Designed specifically for 1st Generation 2003–2005 YF1 Honda Pilot models. It will NOT fit 2006–2008 facelifted Pilot models due to completely different center stack wiring harness connectors and interior dash bezels. Always confirm matching part number S9V-A410-M1 or 79600-S9V-A41 on your original unit's rear sticker prior to ordering.

Important Installation Information

• Direct Mechanical Snap-In & Harness Integration: Replacing this climate unit requires basic hand tools or plastic trim removal tools. Carefully unclip the center dash trim bezel surrounding the stereo and climate controls to expose the unit's mounting framework, pull the assembly forward, unclip the rear multi-pin wiring harness connectors, swap the unit over, firmly reconnect all wiring plugs, press the module back into the dashboard stack until secured, and re-snap the dash bezel back into place.

Key Features

• Fully Bench-Tested Switches: Rotary fan speed switch and temperature selector dials turn smoothly across all positions with clear tactile detents.

• Functional Push Buttons: A/C engagement button, mode selector switches, and rear defrost toggle respond cleanly and illuminate properly.

• Corrosion-Free Harness Terminals: Rear multi-pin connector ports are clean, straight, unbent, and completely free of moisture damage or thermal melting.

• Intact Structural Casing: Front faceplate trim, mounting clip towers, and rear housing structure are original, solid, and free of cracks or broken tabs.

Shipping & Handling

• Packaging: Shipped securely inside a thick, heavy-duty structural box wrapped with static-shielding material, soft foam, and thick bubble wrap to completely isolate the front control knobs, faceplate, and rear electrical docks from transit damage.
