2021-2023 Hyundai Santa Fe Navigation Radio Media Control Button Panel 96540S100

This part number (96540-S1000-RRB) is for the Navigation Radio Media Control Panel (often called the "AVN Keyboard") for the 2021–2023 Hyundai Santa Fe. Unlike the touchscreen itself, this is the physical button bar that sits just below the screen or in the center stack.

A key detail for this specific part: it is frequently associated with Hybrid and Plug-in Hybrid (PHEV) trims, so highlighting that compatibility is vital.

Title Suggestion

2021-2023 Hyundai Santa Fe Navigation Radio Media Control Button Panel 96540S1000RRB

Description

Product Overview

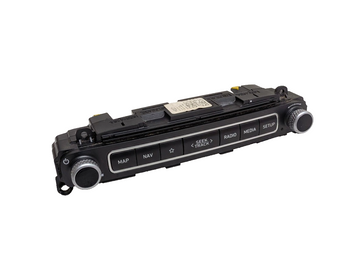

Up for sale is a genuine OEM Hyundai Santa Fe Media Control Panel. This assembly (Keyboard Assembly-AVN) contains the physical shortcut buttons for Map, Nav, Radio, Media, and Setup, along with the Seek/Track and Power/Volume knobs.

• Manufacturer: Hyundai (Genuine OEM)

• Part Number: 96540-S1000-RRB

• Other Names: AVN Keyboard, Multimedia Switch Assembly, Radio Control Panel.

• Color: Black & Silver trim.

Condition Report

• Button/Knob Action: All buttons have been tested for a crisp, tactile click. The Volume and Tune knobs rotate smoothly with no "wobble" or sticking.

• Cosmetics: Excellent condition. The icons and text (MAP, NAV, etc.) are clear with no fading or peeling. No deep scratches on the silver or piano-black accents.

• Tested: 100% functional, pulled from a vehicle with a working infotainment system.

Vehicle Compatibility

Fits the following Fourth Generation Facelift (TM) Hyundai Santa Fe models:

• Years: 2021, 2022, 2023

• Trim Focus: Frequently used in Hybrid (Blue, SEL Premium, Limited) and Plug-in Hybrid (PHEV) trims, as well as some high-trim Gasoline models.

• Check Your Part: Please match the part number 96540-S1000-RRB exactly. There are several versions of this panel that look similar but have different internal connectors depending on whether the car has the 8-inch or 10.25-inch screen.

⚠️ Important Tech Note

• Programming: This is a control interface. While it is usually "plug-and-play" for the physical buttons to work, some vehicles may require a quick system reset or a VIN-sync via a Hyundai GDS tool for the buttons to perfectly match the on-screen display software.

• Knobs: This assembly includes the factory knobs.

Item Specifics

• Brand: Hyundai

• Manufacturer Part Number: 96540-S1000-RRB

• Interchange Part Number: 96540S1000RRB / 638-15999

• To Control: Navigation, Radio, Media, Volume

• Fitment Type: Direct Replacement
