14 15 16 Lexus IS200t IS250 IS350 Dual Air Vents Analog Clock Hazard Switch

The center dash air vent and analog clock assembly is a signature design element of the 2014-2016 Lexus IS interior. Here is a detailed breakdown.

Overview and Design

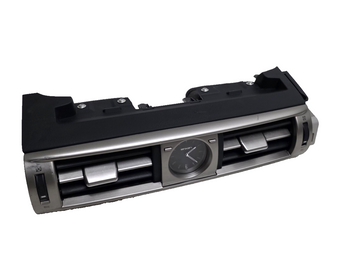

Positioned prominently at the top of the center stack, this assembly serves as an elegant centerpiece for the dashboard. It's a single, integrated unit that combines the two central HVAC air vents, the hazard light switch, and a high-end analog clock, all housed within a single trim bezel. The design is meant to evoke the look of a premium timepiece and is a key part of the car's luxury aesthetic.

Component Breakdown

This assembly consists of four main parts that are sold and replaced as a single unit:

1. The Analog Clock:

   • This is the focal point of the assembly. It is a true analog clock with a silver bezel, a clean white or silver face, and the Lexus "L" logo.

   • For vehicles equipped with the navigation system, the clock's time is automatically set and updated via GPS signal, so it never needs to be manually adjusted.

2. Dual Center Air Vents:

   • These are the two main air vents for the driver and front passenger. Each vent has adjustable louvers (grilles) to direct airflow, controlled by a small tab in the center.

3. Hazard Light Switch (Flasher Switch):

   • The red triangle button for the emergency hazard lights is seamlessly integrated into the trim, typically located between the two air vents just below the clock.

4. Surrounding Bezel/Trim:

   • This is the main housing that holds all the other components together. The finish of this trim piece may vary slightly depending on the vehicle's specific package (e.g., a standard matte finish vs. a metallic or silver finish found in F Sport models).

Vehicle Compatibility

This dash vent and clock assembly is a highly interchangeable part across the Lexus IS and RC lineup from this era, as they share the same dashboard architecture.

• 2014-2015 Lexus IS250

• 2014-2016 Lexus IS350

• 2016 Lexus IS200t

• 2016 Lexus IS300 (AWD Model)

It is also a direct fit for:

• 2015-2016 Lexus RC200t / RC300 / RC350

• 2015-2016 Lexus RC F

Important Notes for Replacement

• Sold as a Single Unit: You cannot typically buy just the clock or just one of the vents from the dealer. This is sold as a complete assembly.

• Plug-and-Play Installation: Replacement is a straightforward, plug-and-play process. There are two main electrical connectors on the back—one for the clock and one for the hazard switch. No special programming is required.

• Part Numbers: While the unit is widely compatible, it's always best to match the part number from the back of your original unit to ensure an exact match in trim finish. A common part number for this assembly is 55670-53100, but other variations exist.
